INTRODUCTION

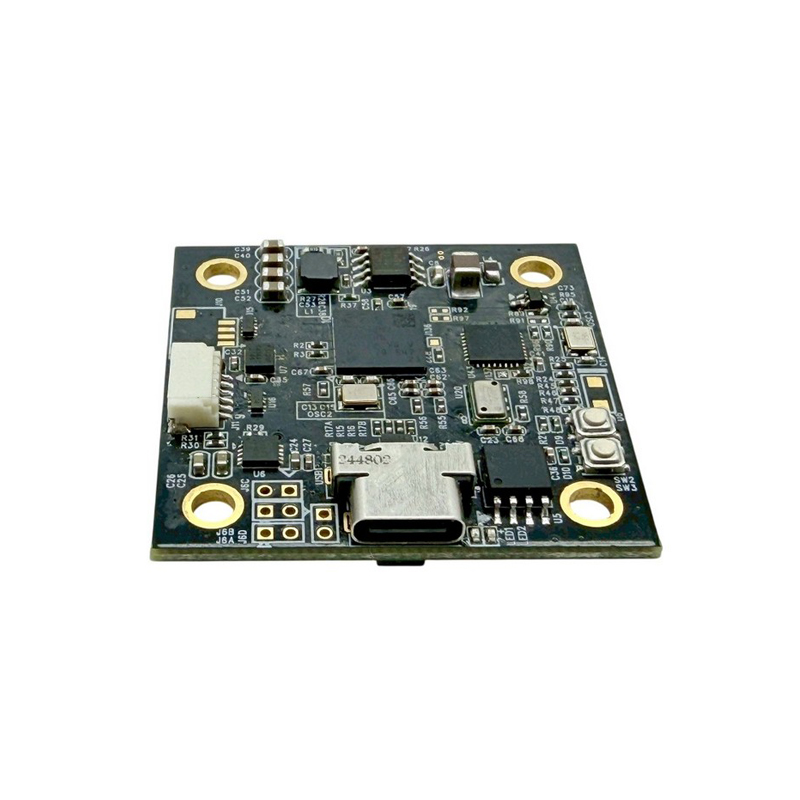

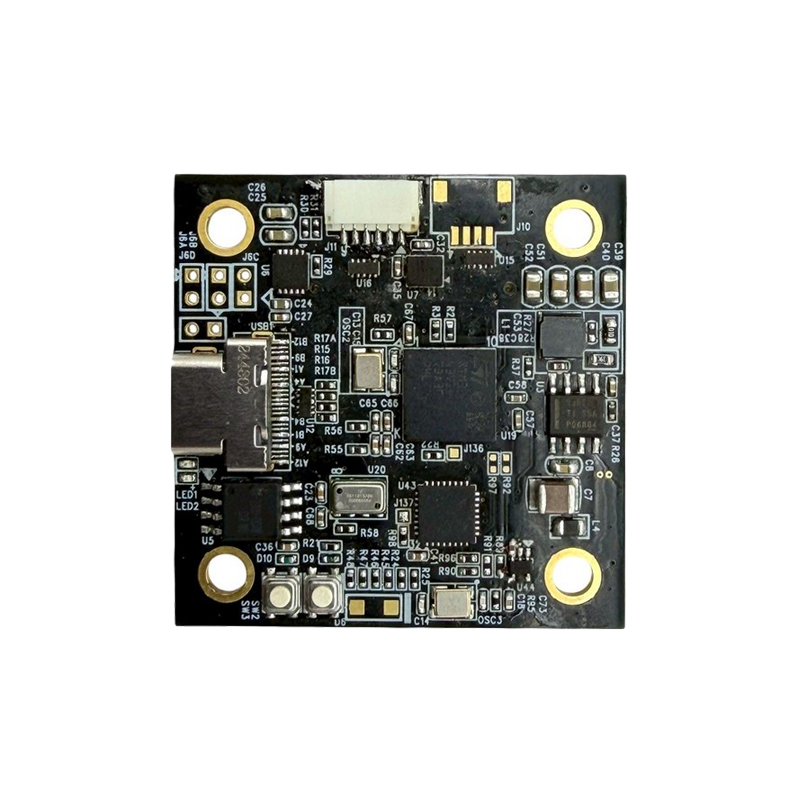

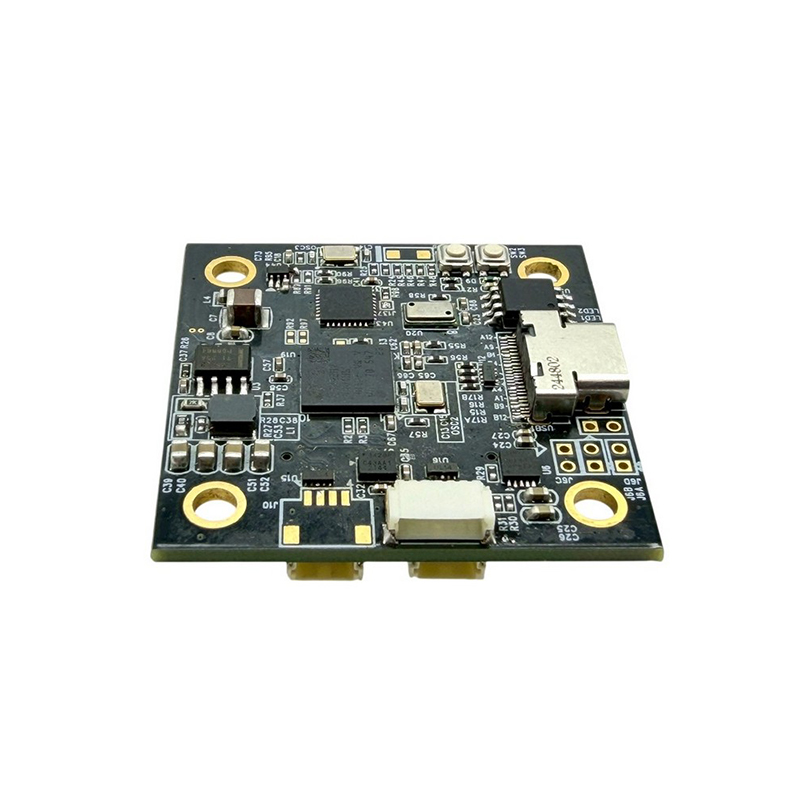

The FC-001-AP-FPV H7 flight controller is powered by a high-performance STM32H743 processor (ARM Cortex-M7) and integrates an ICM42688 IMU with a high-accuracy MS5611 barometer, providing reliable sensing and responsive flight control performance. With 64MB onboard flash for data logging and dual power input support via battery and USB, it ensures stable operation across a wide range of use cases.
Designed to support both ArduPilot and Betaflight, the controller offers flexible connectivity with 8 PWM outputs, multiple serial interfaces, dual CAN and I²C buses, dual GPS support, and comprehensive RC input compatibility. Featuring OSD, SD card support, power monitoring, and a wide 3S–8S battery input range, it delivers a compact, versatile, and easy-to-integrate solution for modern multirotor and fixed-wing platforms.
FEATURES
- High-performance STM32H743 processor (ARM Cortex-M7)
- Integrated IMU: ICM42688
- High-accuracy barometer: MS5611
- 64MB Flash for logging
- Dual power input (Battery and USB)
- Supports OSD
- Supports SC Card
- Supports power monitoring
- Number of Serial interface: 6
- Number of PWM I/O: 8
- Battery input voltage: 3S – 8S
- Number of CAN interface: 2
- Number of I2C interface: 2
- Number of ADC interface: 1
- Number of GPS supported: 2
- Supports RC input signals: PPM, SBUS, DSM
- Support Ardupilot and Betaflight
PACKAGE CONTENTS
- 1x FC-001-AP-FPV
