INTRODUCTION

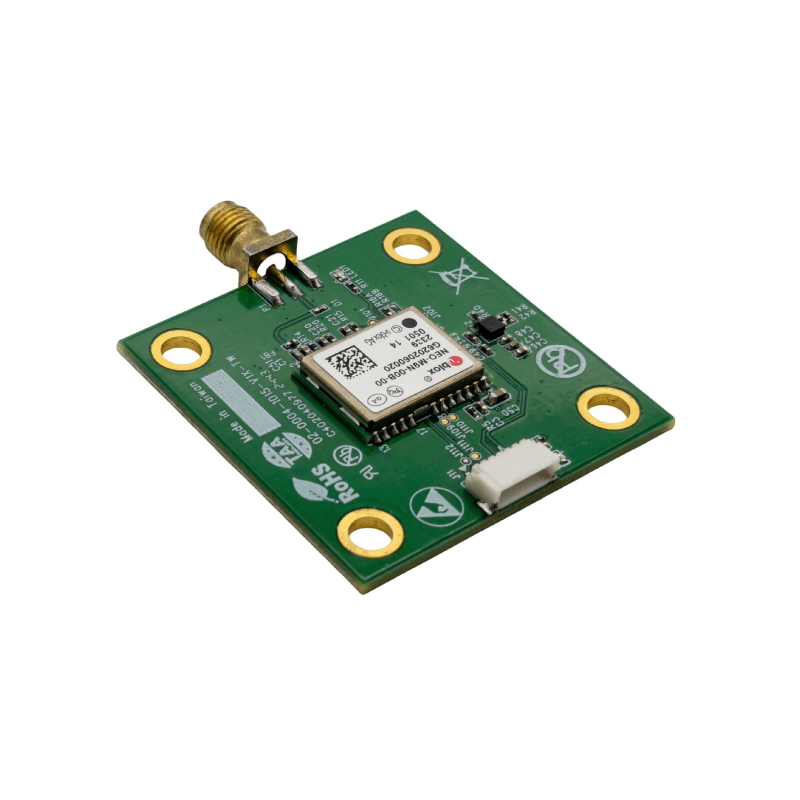

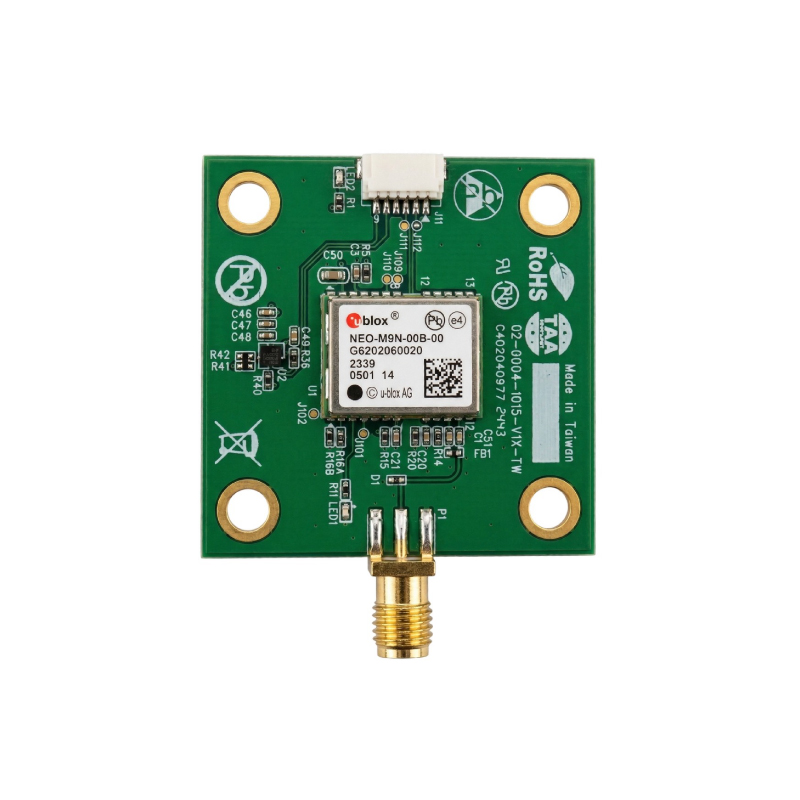

The FC-001-GPS GPS Module with Compass uses ublox with the high-performance LIS3MDL digital compass, offering superior magnetic precision and reliable heading data. By housing the compass within the GPS unit, it allows for easy mounting away from motors and ESCs, significantly reducing electromagnetic interference for more stable flight and “Return to Home” accuracy.
It provides an industry-leading -167 dBm navigation sensitivity, allowing the unit to maintain a rock-solid lock even in challenging environments like deep urban canyons or under dense tree canopies.
The module boasts a navigation update rate of up to 25 Hz. This means your flight controller receives position data 25 times per second, ensuring ultra-smooth tracking during high-velocity maneuvers. With a 2.0m CEP position accuracy, you can trust your vehicle to hold its station or follow waypoints with surgical precision.
This module is optimized for both cost-sensitive and high-performance applications, from long-range FPV drones to industrial robotics. It remains compatible with standard flight controller ecosystems (such as ArduPilot and PX4) via the DDC (I2C compliant) interface, making it a seamless upgrade for those moving from older NEO generations to the latest in high-speed, high-sensitivity navigation.
FEATURES
- Industry leading -167 dBm navigation sensitivity
- Navigation update rate up to 25 Hz
- Cold starts: 29s
- Position accuracy: 2.0m CEP
- Power and fix indicator LEDs
- LIS3MDL Compass

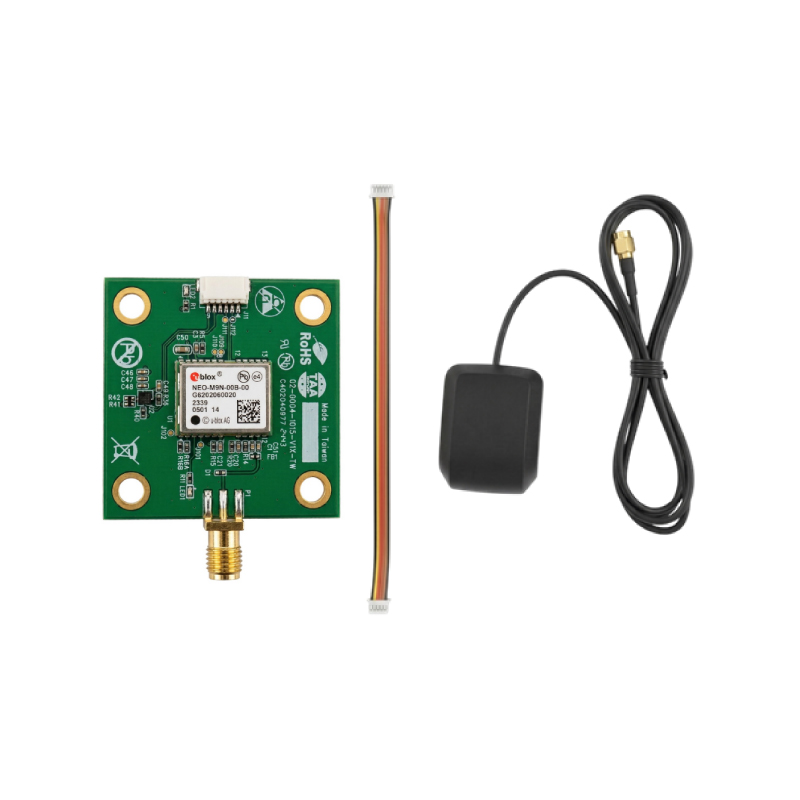

PACKAGE CONTENTS
- 1x FC-001-GPS
