FPV-CVBS-HDR

INTRODUCTION

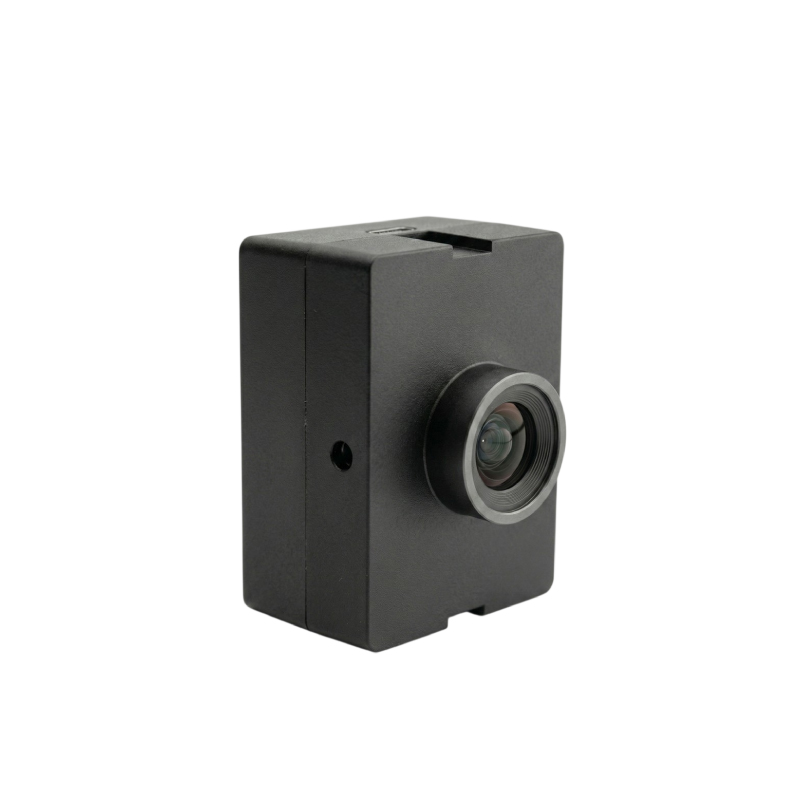

FPV-CVBS-HDR is a mini low-latency FPV camera built for drones and other fast-moving unmanned platforms, where the pilot must react instantly to changing light conditions. Based on the Sony STARVIS IMX462 sensor with HDR capability, it adapts quickly in high-contrast scenes (backlight, shadows, sudden sunlight) to keep details visible for confident control. It outputs standard analog CVBS video (NTSC/PAL) and supports 4:3 or 16:9 switching for typical FPV systems.

FEATURES

FPV Camera

• Active Image: 1920×1080@120fps
• Sensor Type: CMOS 1/3”
• Scale: 4:3/16: 9 Switchable
• Video Out: NTSC/PAL
• FOV: FOV-D(99°), FOV-H(82°), FOV-V(67°)
• White Balance: Auto
• Day / Night: EXT/ Auto/ Color/ B&W
• Power Requirement: DC 3.5V〜16V(Typical:3.5V~3.6V)
• Consumption: TBD
• Weight: TBD
• Dimensions(mm): TBD

CMOS Sensor: IMX462LQR-C

• High-Sensitivity CMOS Image Sensor (STARVIS Technology)
    – Sony STARVIS back-illuminated CMOS sensor for excellent low-light performance
    – Approx. 2.07 megapixels, 1920 (H) × 1080 (V) active pixels
• Flexible Image Readout Modes
    – Full-pixel scan (Full HD)
    – 720p HD readout mode
    – Window cropping mode
    – Horizontal and vertical image inversion
• High-Speed Image Capture
    – Maximum frame rate: 120 fps at 1080p Full HD
    – Supports 74.25 MHz / 37.125 MHz input clock frequencies
• High Dynamic Range (HDR) Capability
    – Multiple-exposure HDR
    – Digital Overlap (DOL) HDR
    – Ideal for high-contrast or backlit environments
• Advanced Exposure and Gain Control
    – Variable-speed electronic shutter (resolution: 1H units)
    – 10-bit / 12-bit A/D conversion
    – Dual conversion gain: High Conversion Gain (HCG) / Low Conversion Gain (LCG)
    – Low-noise CDS / PGA circuitry
    – Wide gain range:
        ▸ 0 to 29.4 dB analog gain (0.3 dB steps)
        ▸ 29.7 to 71.4 dB combined analog + digital gain (0.3 dB steps)
• Multiple Output Interfaces
    – CMOS logic parallel SDR output
    – Low-voltage LVDS serial DDR output (configurable 2-channel / 4-channel / 8-channel)
    – MIPI CSI-2 output (2-lane / 4-lane, RAW10 / RAW12)
• High Optical Compatibility
    – Recommended exit pupil distance: –30 mm to –∞
        ▸ Compatible with a wide range of lenses including wide-angle, telecentric, and high-CRA optical designs
• Integrated System Control
    – Built-in timing control circuits
    – Integrated H/V drivers
    – Built-in serial communication interface
        ▸ Reduces system design complexity for end users

PACKAGE CONTENTS

• 1x FPV-CVBS-HDR
