INTRODUCTION

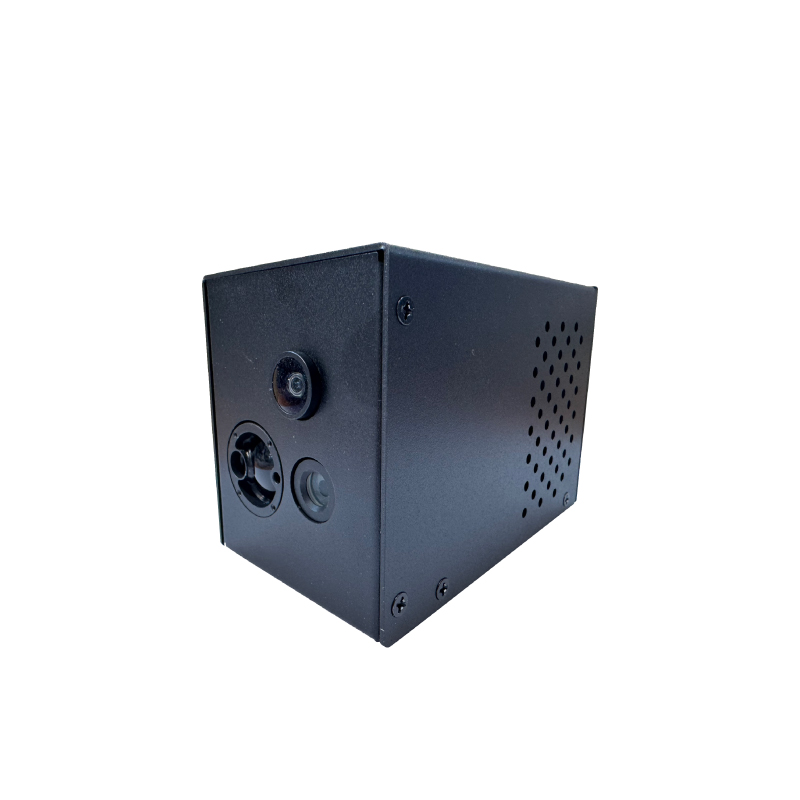

The CAM-2D1L is a compact dual-EO and laser rangefinder (LRF) payload, powered by dual Sony IMX415 sensors. This configuration pairs a wide-angle lens for situational awareness with a long-focal lens for precise target identification. Engineered for rapid UAV and robotic integration, it provides dual-view imaging and real-time distance measurement via a simplified interface of HDMI, UVC, and UART—eliminating the need for complex, custom camera stacks.
At its core, the CAM-2D1L features a high-performance embedded compute engine (quad-core 64-bit Arm with GPU/video acceleration) that manages real-time video, OSD overlays, and system control. For edge AI requirements, an integrated M.2 expansion slot supports optional acceleration modules, scaling performance to 13 or 26 TOPS. This extensibility transforms the CAM-2D1L from a standalone camera into a powerful, AI-ready compute platform.
FEATURES
- Dual EO imaging using two Sony IMX415 sensors
Wide-angle view for awareness and tele view for identification—both built on the IMX415 (Type 1/2.8, 8.46MP / 4K-class). - Dual-view output switching with operator-friendly zoom
Default wide view, switch to tele view, with 1x / 2x / 4x digital zoom modes. - Integrated laser rangefinder for real distance measurement
Class 1, 905nm, max range ≥ 1000m, min range ≥5m, with published accuracy model.
Reference LRF module capability includes ≥3Hz measurement frequency and UART control. - On-screen ranging overlay (OSD)
Center-point ranging with on-screen distance display toggleable. - Fast integration interfaces
Single HDMI video output, UVC out, and UART control for simple UAV/robot hookup. - High-performance embedded compute
Built on a quad-core Arm Cortex-A76 @ 2.4GHz with a VideoCore VII-class GPU/video pipeline, enabling real-time video handling, overlays, and system control. - Security & video-processing ready
Supports AES encrypted data transmission and H.264 video compression at the controller layer. - M.2 expansion for optional AI acceleration
M.2 interface supports optional AI modules, enabling 13 TOPS or 26 TOPS configurations per customer request. - Rich system I/O + flight-control integration
Supports HDMI / USB outputs, multiple control paths (USB / UART), and Pixhawk integration, enabling broader platforms beyond FPV.
PACKAGE CONTENTS
- 1x CAM-2D1L
