INTRODUCTION

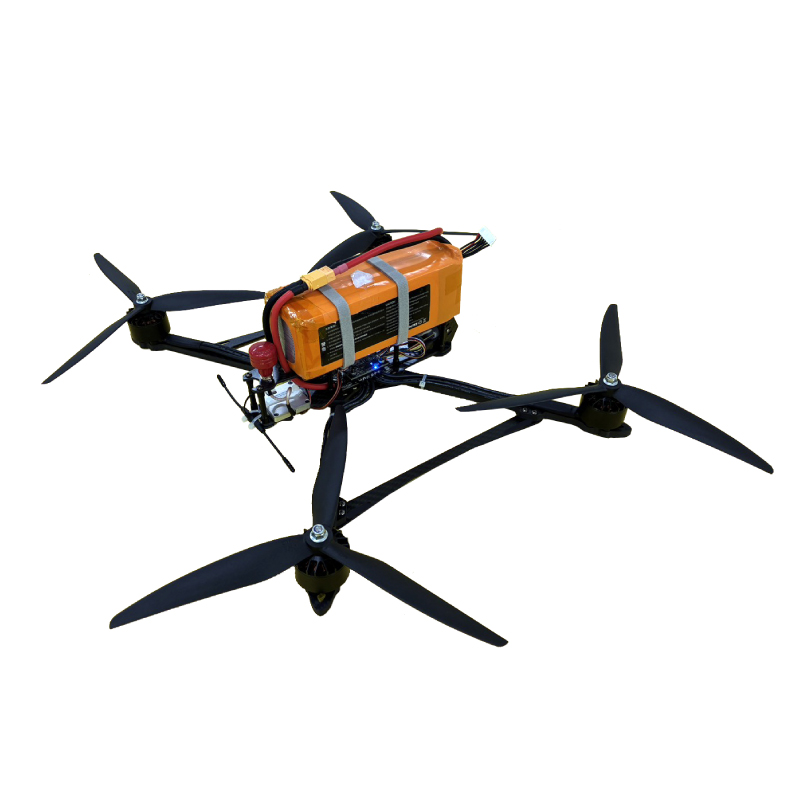

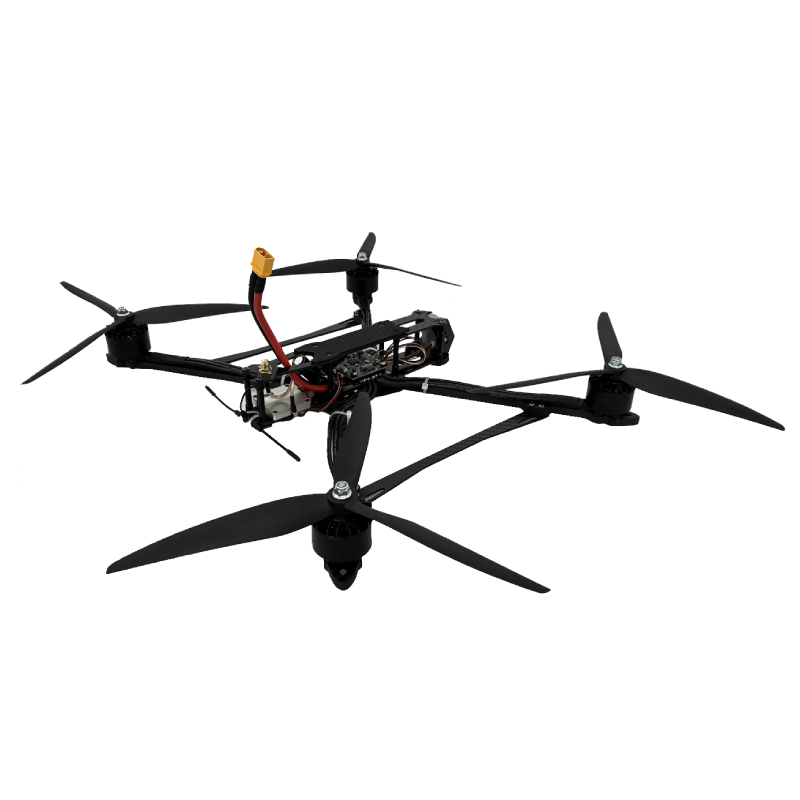

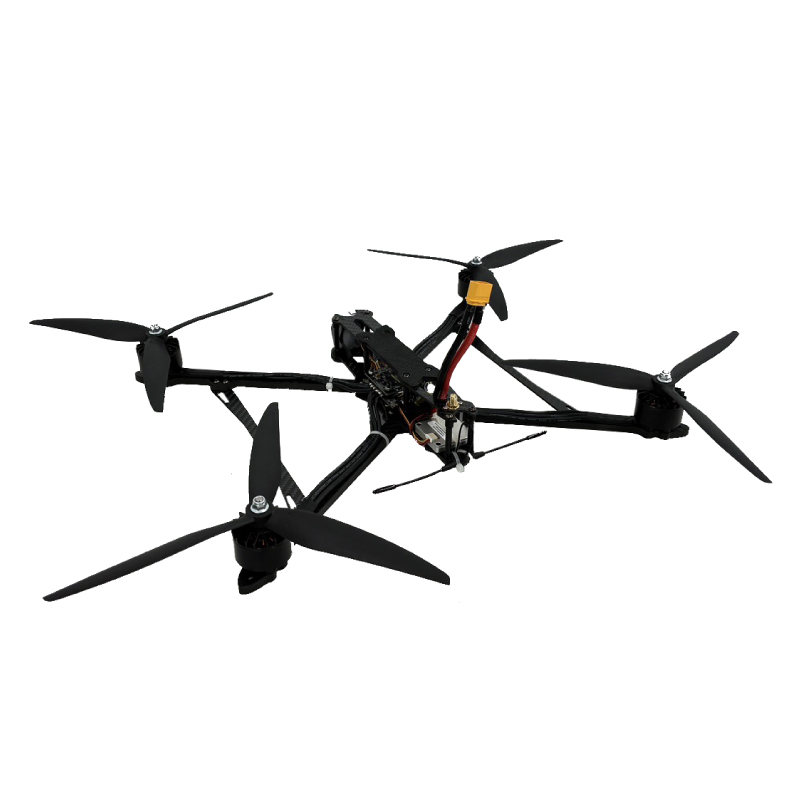

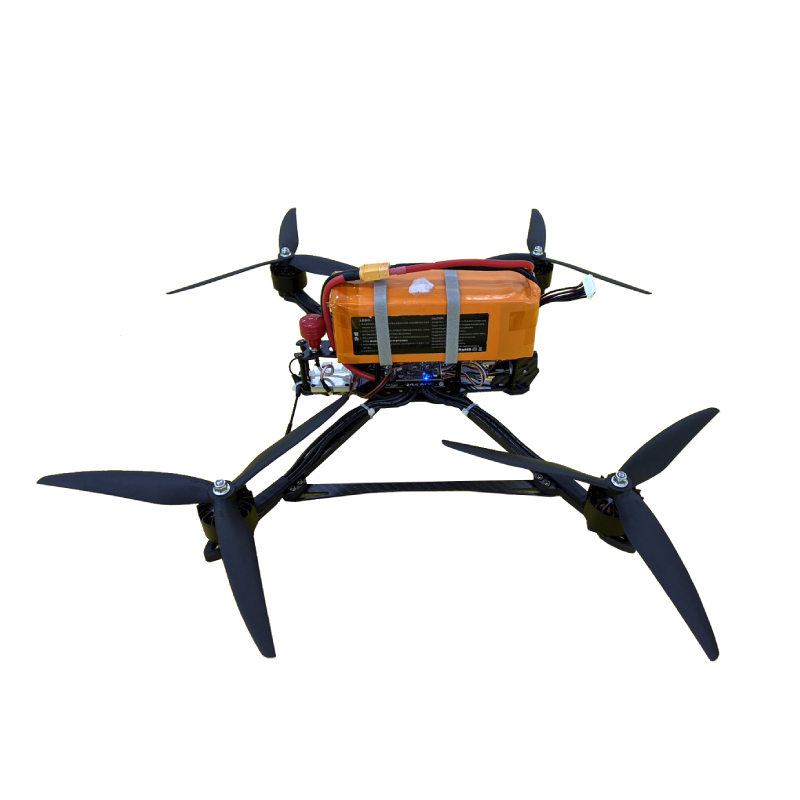

The MD4-EC01-8S-60A 10″ Long Range FPV Drone is a 10-inch long range and mapping FPV drone platform built around ArduPilot firmware, AM32 ESC passthrough, and 3115 KV900 motors. Wide 4S–8S battery support lets builders trade off between a lighter, snappier 4S setup and a high-endurance 8S configuration for extended-range flights.
FEATURES
- Wide voltage range (4S–8S) — one airframe, two flight profiles: agile short-range on 4S or long-endurance mapping runs on 8S.
- ArduPilot-ready — full support for waypoint missions, Harmonic Notch Filter vibration tuning, and Mission Planner passthrough setup.
- High-torque 3115 KV900 motor.
- Modular AM32 ESC — 60A continuous rating with passthrough flashing for easy firmware updates.
- Long-range ELRS 915 MHz control link (FD-915RX), supporting reliable operation up to 10 –15 km at standard packet rates with a compatible long-range TX module.
- Dimensions: 42x36x6 cm
- Product weight: 0.95kg
PACKAGE CONTENTS
- 1x MD4-EC01-8S-60A
- 1x GPS Module
- 1x GPS Antenna
- 1x Signal 6-pin cable
- 1x FPV antenna 5.8G
- 4x Propeller
