EX-58TVI

INTRODUCTION

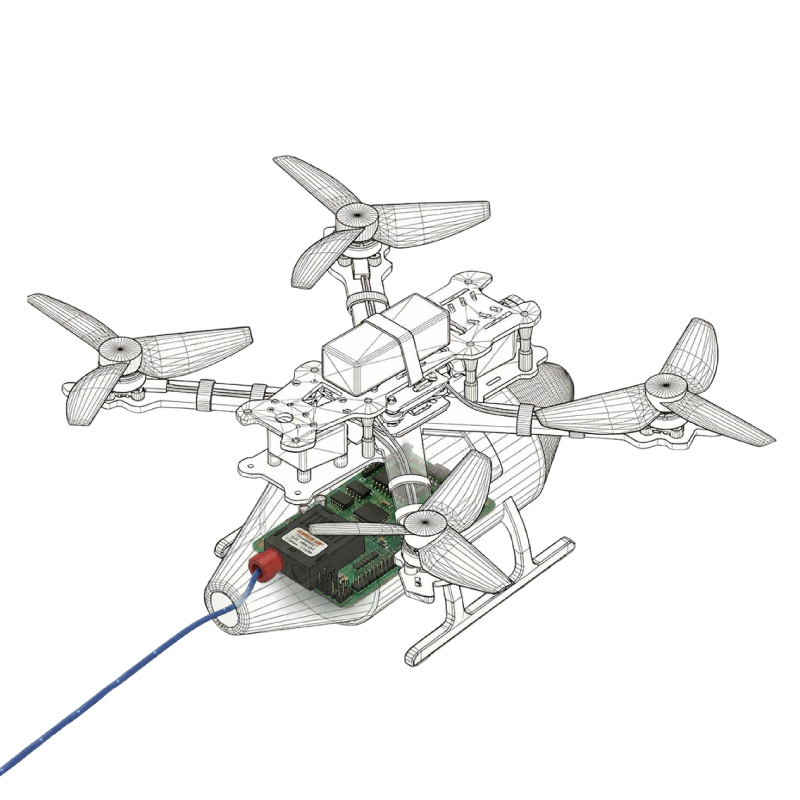

Our drone fiber system is built for missions where RF is unreliable, crowded, or simply not allowed. It delivers a crisp, real-time pilot view through a high-efficiency video pipeline, wrapped in strong encryption, and engineered to stay usable even when the link gets ugly and so you keep situational awareness instead of staring at a frozen screen.
A key advantage is the additional HDMI 2.1 input path over fiber with virtually no added delay, which lets the station side host a powerful AI engine while the vehicle stays lighter and cleaner. Add USB I/O over the same fiber, and the link becomes a remote extension of your station—cameras, sensors, storage, and smart peripherals can all be treated as if they’re locally connected. This pushes the system well beyond FPV: high-end drones, boats, UGVs, and long-range robotic platforms all benefit from the same “fiber backbone + station intelligence” architecture.

FEATURES

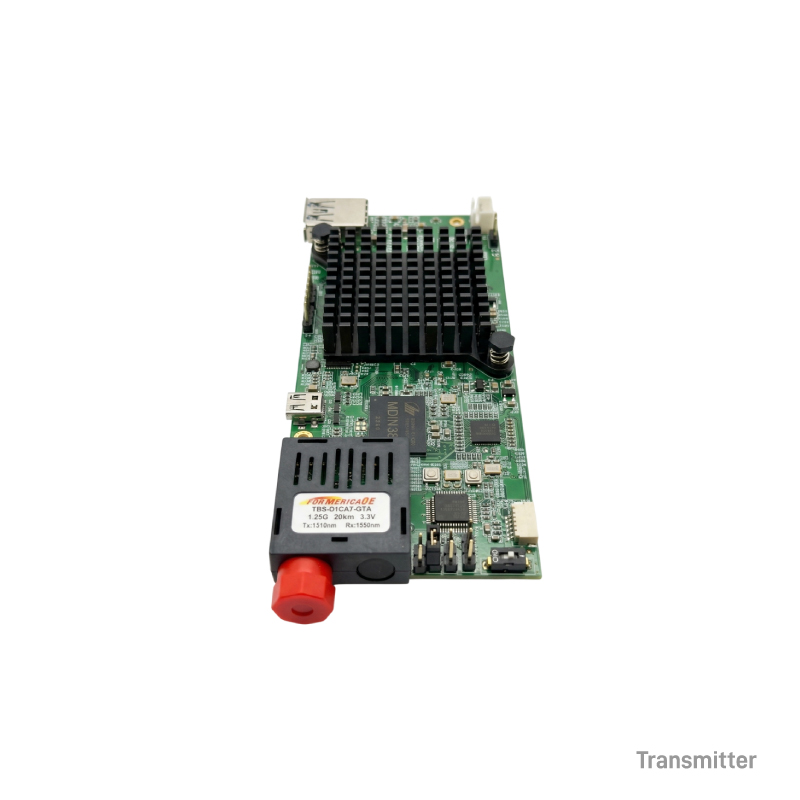

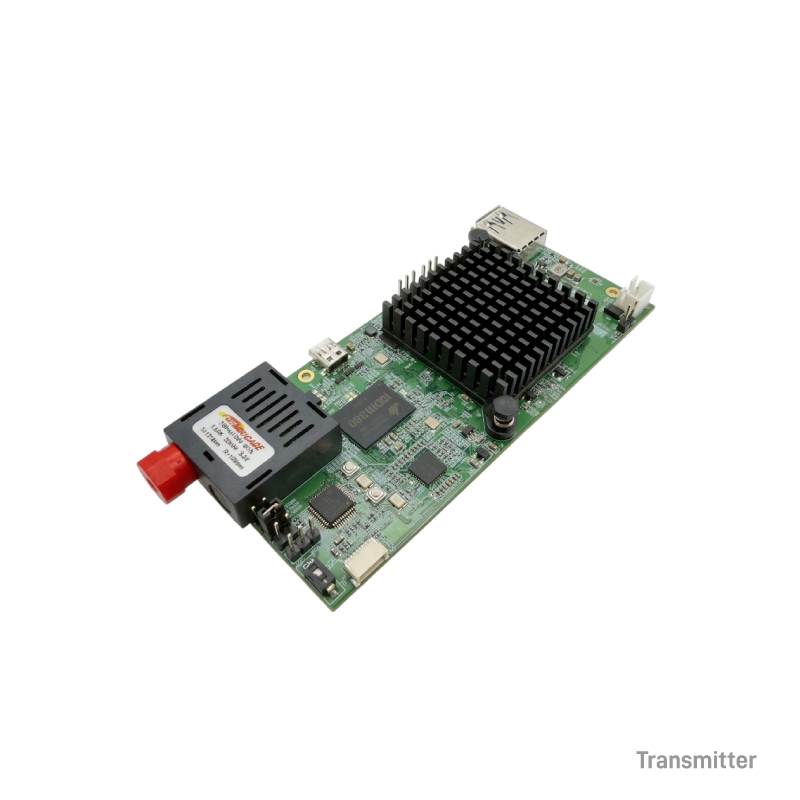

Transmitter (Drone)

• Superior AV1 proprietary codec to provide the best video quality through efficient bandwidth.
• Input Voltage: 3–8S LiPo
• AES256 encrypted A/V streams to reassure the secure channel communication.
• Sustains a huge ratio of packet losses and video remains recognizable under the terrible　networking conditions due to fiber bending, waving or distortion.
• Supports multi-encode & decode capability (proprietary codecs)
• Glass-to-glass ilatency is as low as 24ms to 80ms dependent upon the input formats: HDMI, USB or TVI.
• Supports SBUS (100 Kbps), CRSF (400Kbps) bypass from station remote control
• Supports TVI camera resolution up to 1080P@60
• Supports HDMI 2.1 input up to 4K120 with DSC support
• Supports USB 3/2 transmission including UVC camera up to 4K video.
• Extends signals over single-mode fiber for distances exceeding up to 20-50 km.

PACKAGE CONTENTS

• 1x EX-58TVI
