INTRODUCTION

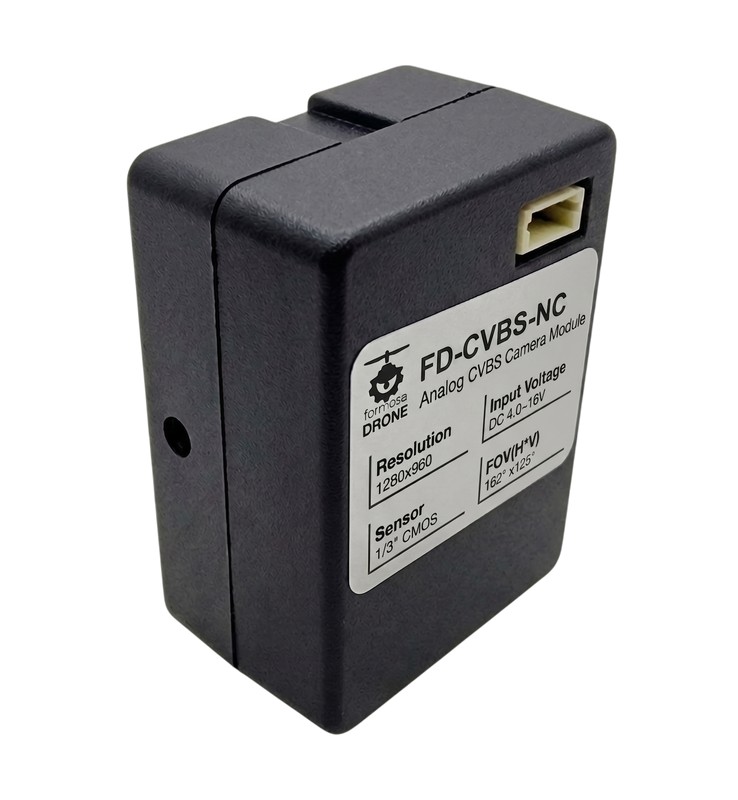

The FD-CVBS-NC Mini Low-Latency FPV Camera is designed for high-performance FPV applications, offering high quality images and low latency video in a compact and lightweight form factor. Featuring a 1/3” CMOS sensor and support for resolutions up to 1280×960 at 60 fps, it captures sharp, true-to-life video. With a wide dynamic range of 71 dB and high sensitivity of 6500 mV/lux-sec, the camera ensures reliable performance across a wide range of lighting conditions.
FEATURES
FPV Camera
- Active Image: 1920×1080@60fps
- Sensor Type: CMOS 1/3”
- Scale: 4:3 / 16:9 Switchable
- Video Out: NTSC/ PAL
- FOV: FOV-D(195°), FOV-H(162°), FOV-V(125°)
- White Balance: Auto
- Day / Night: EXT/ Auto/ Color/ B&W
- Power Requirement: DC4V〜16V
- Consumption: 150~160mA@DC5V
- Weight: TBD
- Dimensions(mm): TBD
CMOS Sensor:
- Optical Format: 1/3”
- Active Pixels: 1288H x 968V
- Pixel Size: 3.75 x 3.75µm
- Color Filter Array: RGB Bayer Pattern
- Chief Ray Angle: 9 degrees linear
- Shutter Type: Electronic rolling shutter
- Maximum Frame Rate:
– Full: 1280×960@60fps
– HDR: 1280×960@30fps, 2 frame staggered output - Sensitivity: 6500mV/lux-sec
- Max SNR: 37.2 db
Dynamic Range: 71 db - Dark Current: 7.0 mV/sec @ 45°C
- Operating Junction Temperature: -30°C to 85°C
- Stable Image Junction Temperature: 60°C
PACKAGE CONTENTS
- 1x FD-CVBS-NC
- 1x FPV cable
